Cold solder joint symptoms and repair: inspect first, then fix the cause

Open with the key point that appearance alone is not a complete diagnosis

A dull or cracked-looking joint can be a clue, but it is not enough on its own to diagnose a cold solder joint. Start by confirming the fault pattern, then inspect the joint and surrounding parts before you decide whether it needs contact rework or hot air.

List possible visual and intermittent-fault clues without guaranteeing identification

• Dull, grainy or uneven solder may suggest a problem, especially if the joint also moves under light pressure.
• Intermittent faults that change when the board is tapped, warmed or cooled can point to a poor connection.
• Cracked solder around a lead, pad or connector leg is another common clue, but it still needs confirmation.
• A joint that looks fine can still be bad if contamination, poor wetting or heat loss prevented a proper bond.

Power down, isolate and inspect under suitable magnification

Power the assembly down first and isolate it from any supply before inspection. Use suitable magnification and good light so you can look for cracks, lifted edges, debris, excess solder and signs of movement at the lead or pad.

1. Disconnect power and wait for any stored charge to discharge safely.
2. Inspect the joint from more than one angle.
3. Check nearby parts for heat damage, residue or mechanical strain.
4. Note any repeatable symptom before touching the board.

Check movement, contamination, heat transfer and joint access as possible causes

Do not assume the solder itself is the only issue. Movement at the joint, flux residue, oxidation, poor tip contact, a large copper area drawing away heat, or awkward access can all stop the solder from wetting properly.

• If the component is loose, the repair may need mechanical support as well as solder.
• If contamination is present, clean the area before rework where the process allows it.
• If the joint sits on a large plane or under a crowded part, heat transfer and access become part of the diagnosis.

Choose contact rework or hot air by joint type and nearby-component risk

For a through-hole lead or a simple exposed pad, contact rework is often the more direct choice. For surface-mount parts, hot air can be appropriate when nearby components make iron contact risky. SparkFun notes cold joints as a rework scenario and discusses hot-air reflow as one tool for surface-mount work.

Choose the method that suits the joint type and the surrounding components, not the one that simply feels quickest.

Use compatible flux/solder and the lowest effective documented process

Use flux and solder that are compatible with the joint and follow the documented process for the materials in front of you. Weller links effective heat transfer to tip selection, wetting and controlled working temperature, so aim for the lowest effective setting that still produces proper wetting instead of chasing a higher temperature by default.

If the joint still refuses to wet, stop and re-check contact quality, cleanliness and access rather than repeatedly heating the area.

Inspect after cooling and escalate lifted pads, cracked boards or mains equipment

Let the joint cool, then inspect it again before applying power. A good repair should look consistent and should not move when lightly tested by sight and safe handling alone.

• Escalate lifted pads or cracked boards, because they may need board-level repair rather than a simple reflow.
• Stop if the fault involves mains equipment or anything you cannot fully isolate and understand.
• Do not keep reheating a joint without competence and circuit information.

Add an FAQ on dull lead-free joints and when testing is required

Is a dull lead-free joint always cold?

No. Lead-free solder can look matte even when it is acceptable, so appearance alone is not conclusive. Check for movement, cracking, poor wetting and the fault behaviour before deciding to rework it.

When should testing be required?

If the circuit is safety-critical, the fault is intermittent and unexplained, or the board belongs to mains equipment, stop and hand it to a competent technician for proper testing. Reflowing again is not a substitute for electrical diagnosis.

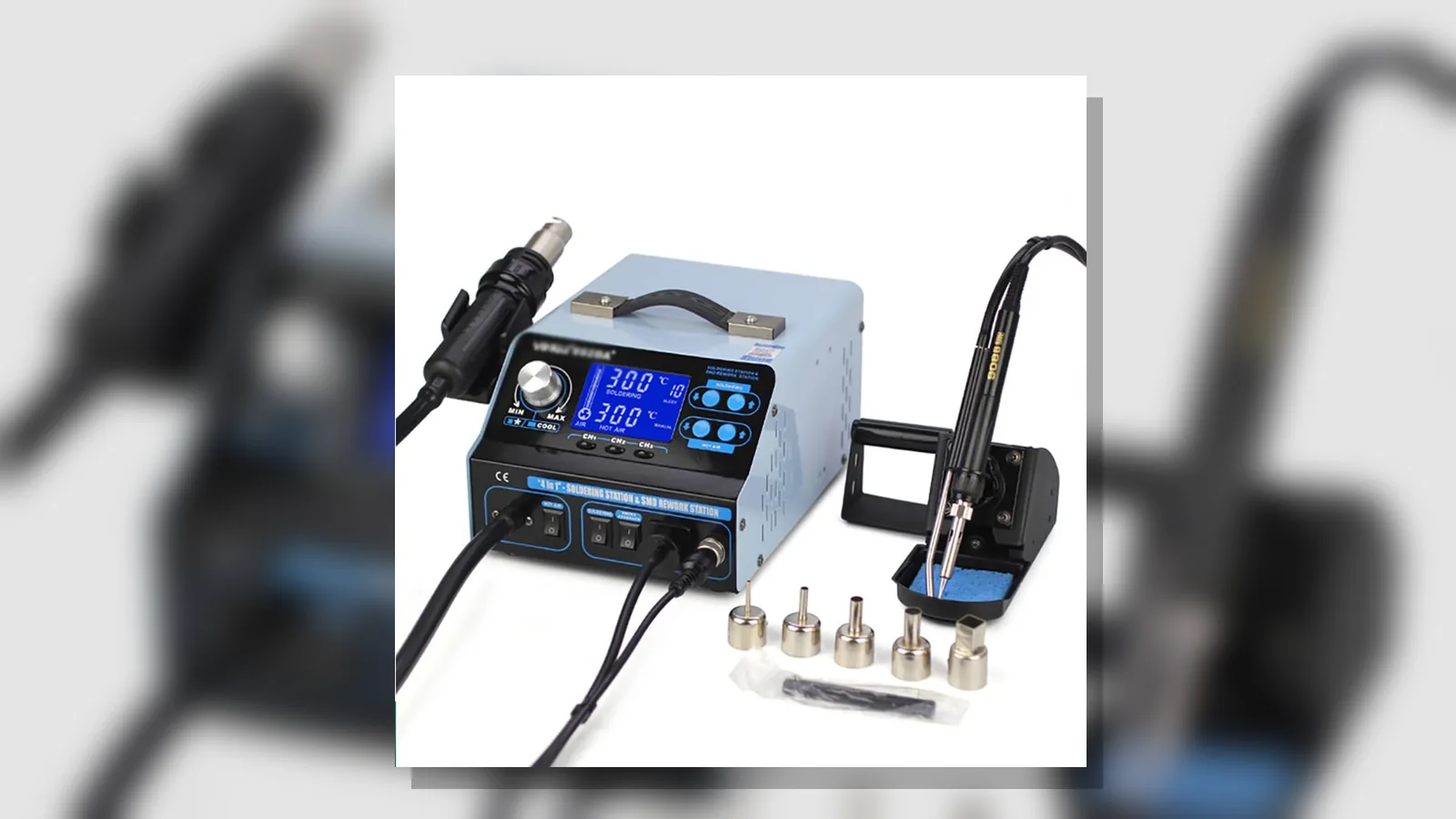

If you want a combined rework setup for inspection and repair, view the product details.
