Hot Air Rework Soldering Station: A UK Buyer's Guide
Short answer: A hot air rework soldering station adds a controlled stream of hot air to a normal iron, so you can lift and refit surface-mount chips, shield cans and charging-port connectors that a pencil iron alone cannot touch. For repair work you want independent hot air and iron, real temperature control, and a couple of nozzle sizes. The YIHUA 992DA+ pairs a 650W hot-air channel (100–480°C) with a 60W iron (200–480°C) for £273.78.
If you started out reflowing phone screens and battery pads with a single iron, the first shielded charging-port job is where a plain iron runs out of road. Reworking a modern board means heating a whole component evenly, not touching one leg at a time, and that is exactly what a hot air rework soldering station is built to do.
This guide is written for people doing paid repair work on the side: the jobs you had to turn away, the money that walked out of the door, and how to buy a station that pays for itself without gambling a customer board on a guess.
Why an iron alone is not enough for board-level work
Surface-mount parts sit flat on the board with tiny leads or hidden pads. To remove one cleanly you have to warm every joint at once, then lift the part before the pads are stressed. Trying that with an iron means chasing legs one at a time and often lifting a pad. Shield cans and QFP chips are worse: there is nothing to touch with a tip.
Plenty of side-hustlers have reached for a DIY paint-stripper heat gun in desperation. It has no fine temperature control and a wide, fierce airflow, so it warps connectors and cooks nearby parts. That is how you turn a paid repair into a board you now owe the customer for. A rework station gives you a narrow, temperature-controlled airflow instead.
What to look for in a hot air rework station
- Independent hot air and iron. A combined hot-air and soldering station lets the iron sit ready while the hot air is already up to temperature, so you are not waiting between steps on a busy evening of jobs.
- Real temperature control. Look for closed-loop PID control that holds a set point rather than a cheap dial that drifts. The 992DA+ provides temperature-controlled hot-air and soldering channels; select a setting appropriate for the board and component.

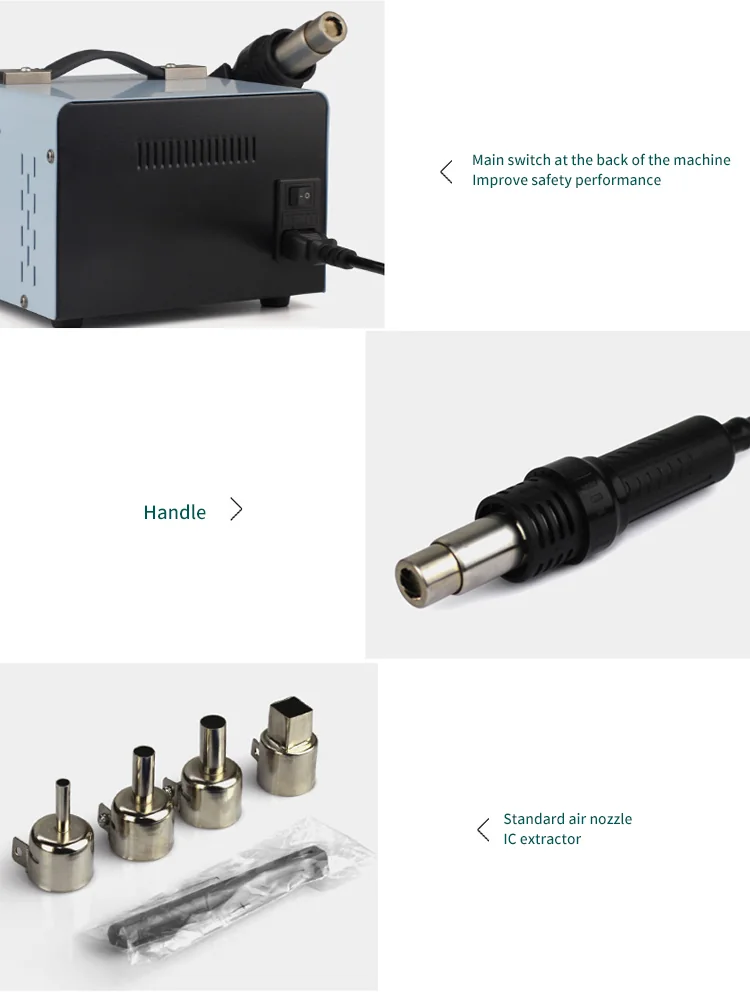

- Airflow and nozzles. Adjustable airflow plus a few nozzle sizes lets you focus heat on one chip without blowing off the 0402 resistors around it.
- Memory presets. Being able to store your usual settings means you are not re-dialling the temperature every time you change job type — a genuine time-saver when you change device models all evening.
- UK stock and returns. UK stock with next-few-days delivery and a clear returns window matters when a job is waiting and you cannot afford a device that goes quiet mid-repair.
Temperatures and airflow that actually work
Hot air cools before it reaches the joint, so the air is set hotter than an iron tip would be. As a rough starting point, run 300–350°C moderate airflow for small SMD parts, 350–400°C for larger components and connectors, and reach for heat-shrink at the low end. Add flux, pre-heat the area, and keep the nozzle moving. Always start cooler and step up only if the solder is not flowing — pushing past about 400°C is how pads lift and plastics distort.
The YIHUA 992DA+ at a glance

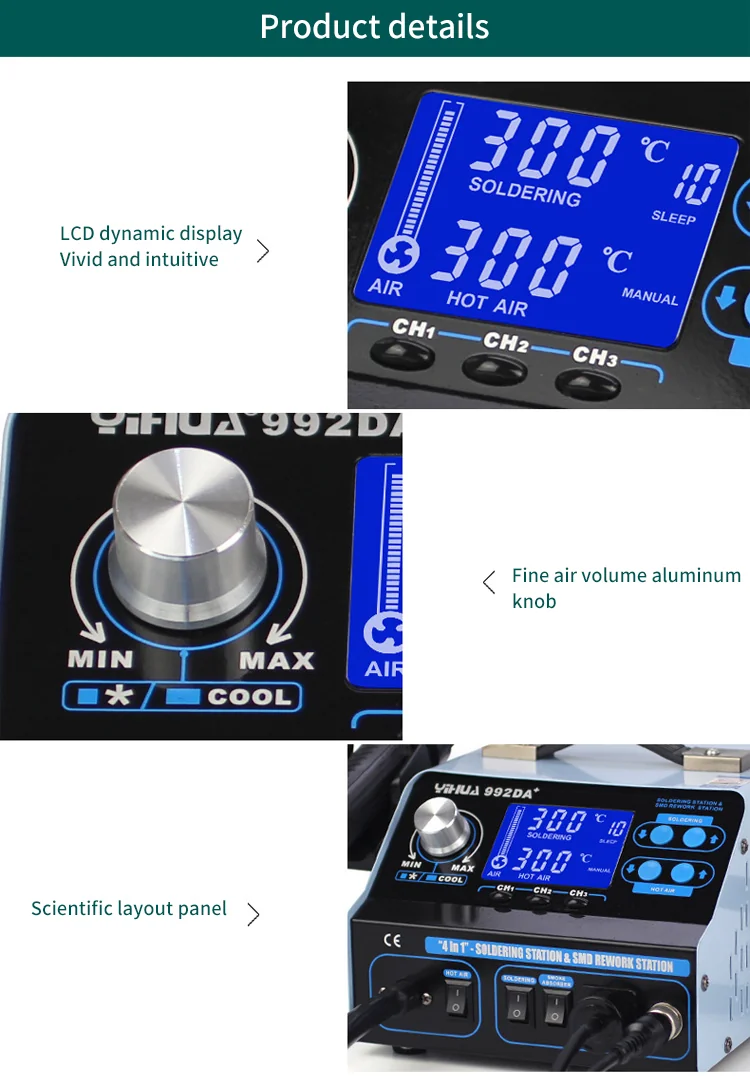

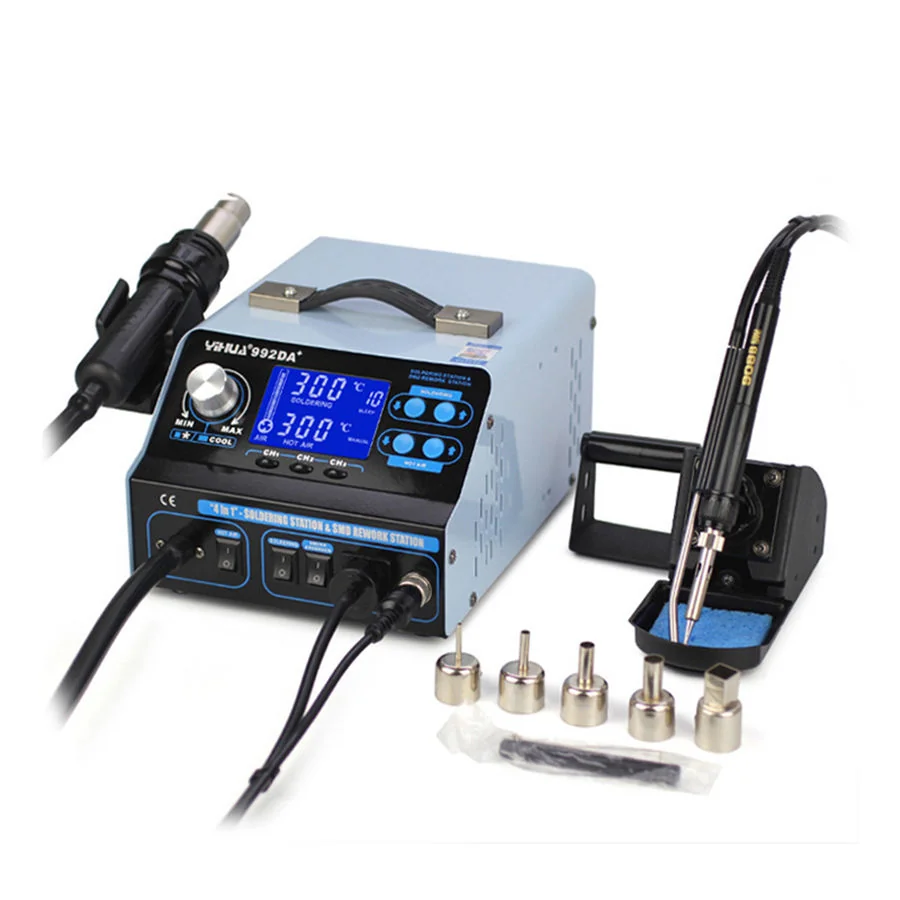

The 992DA+ is a 4-in-1 station: a 650W hot-air channel adjustable from 100°C to 480°C, a 60W soldering iron from 200°C to 480°C, fume extraction and a vacuum-pen interface, with total input rated at no more than 720W. Controls include LCD display, three memory channels, calibration, sleep, and automatic/manual cooling modes. Extraction performance and vacuum range are not specified.
Ready for a station that keeps up? The YIHUA 992DA+ 4-in-1 hot-air rework and soldering station covers soldering, desoldering and SMD rework in one unit.
Shop the YIHUA 992DA+ — £273.78Free UK delivery · 12-month warranty + UK support · 30-day returns · rated 4.8/5 from 200 reviews.
Honest limits
Hot air is not always the right tool. Through-hole joints, big ground pads and thick battery leads are still an iron-and-solder job. Hot air can also disturb light neighbouring parts if you rush it, so tape or shield them and work in stages. If most of your work is screen and battery swaps, a good iron may be all you need for now — but the moment you want to take on connector and board-level jobs, a station is the upgrade that lets you say yes.
Still deciding between a station and a simple iron? See our soldering station vs iron guide. For removing solder cleanly before a swap, read desoldering braid vs pump.
Frequently asked questions
What is a hot air rework station used for?
A hot air rework station removes and refits surface-mount components, connectors and shield cans by heating the whole joint area with a controlled stream of hot air. It is the standard tool for SMD desoldering and board-level repairs that a single iron cannot do cleanly.
Do I need a hot air station for phone repair?
For screen and battery swaps a good iron is often enough, but charging-port connectors, shielded sections and chip-level faults need hot air to lift parts without damaging pads. If you want to take on board-level repair jobs, a hot air station is what makes them possible.
What temperature should hot air be for SMD rework?
As a starting point, use about 300 to 350°C with moderate airflow for small SMD parts and 350 to 400°C for larger components and connectors, always with flux and a pre-heat. Start cooler and step up only if the solder is not flowing, and avoid going much past 400°C.
Is a combined hot-air and soldering station worth it for a repair side hustle?
Yes, if the jobs you currently turn away involve connectors or SMD parts. A combined hot-air and soldering station lets the iron and hot air work together, stores your usual settings so you work faster, and typically pays for itself over a handful of board-level jobs.
